EDS8DSP-E3: EDGE Street Series 8 Channel DSP Processor
Features
- Cast aluminium chassis
- Auto turn on circuit

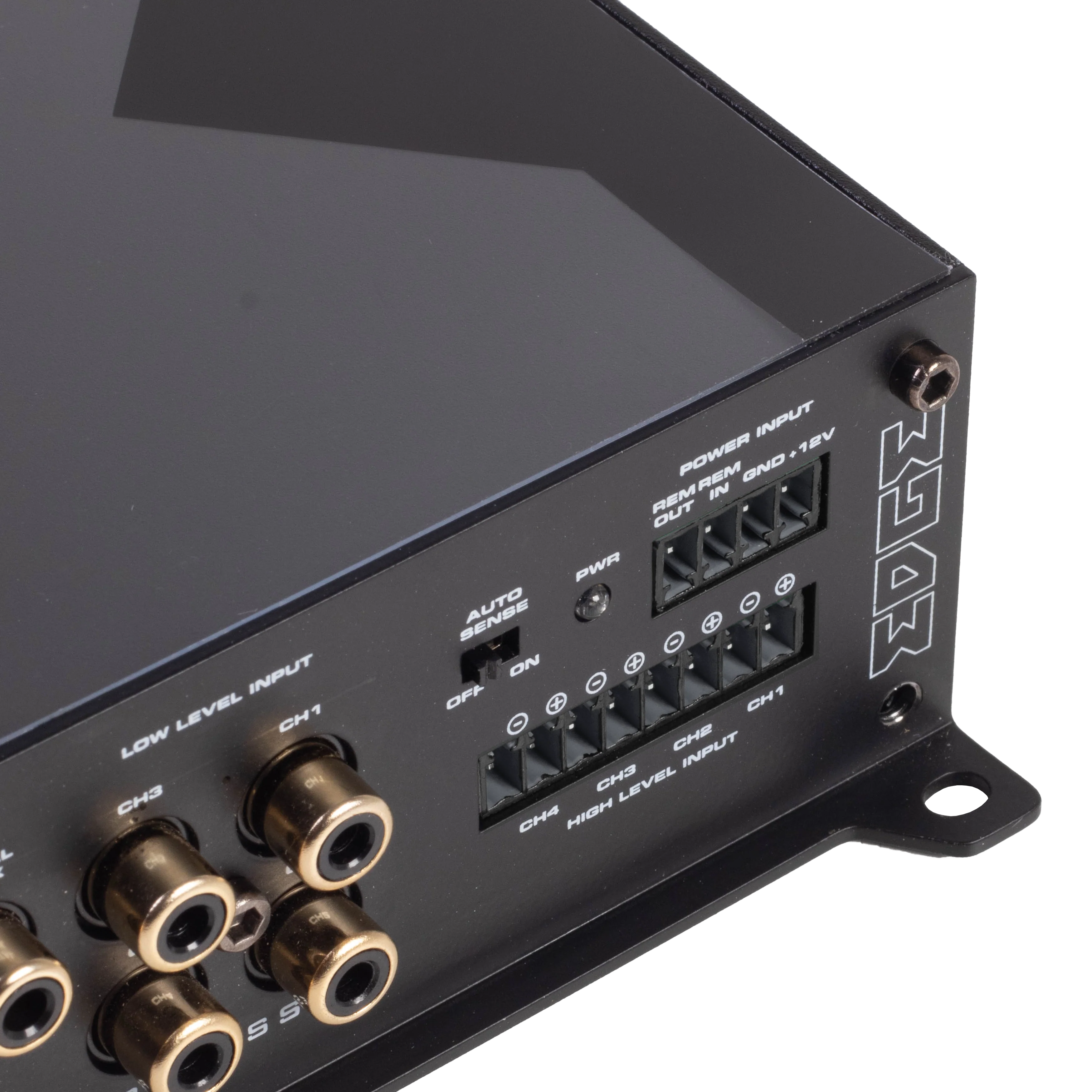

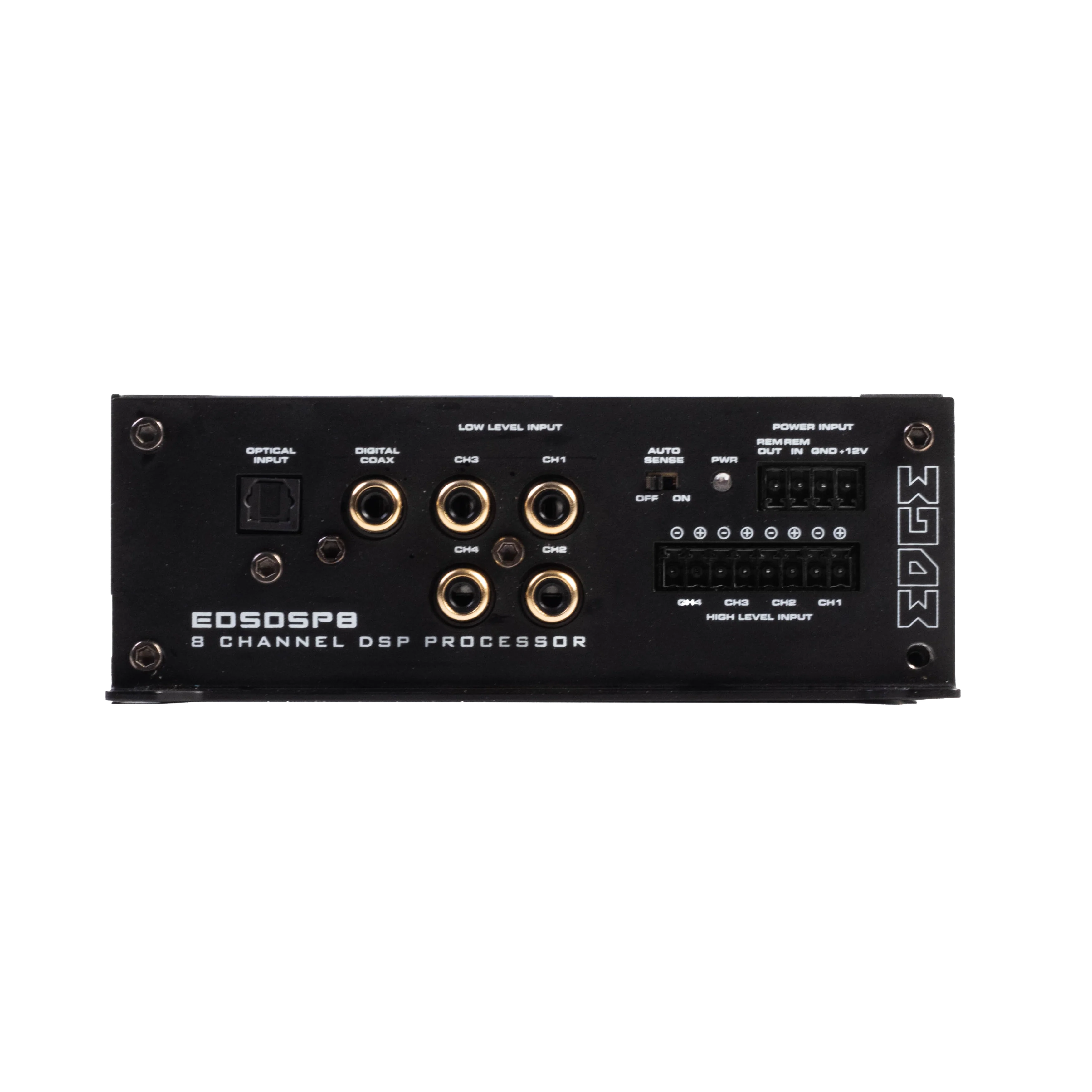

- High and low level input
- Optical and coaxial digital input
- Audio streaming receiver

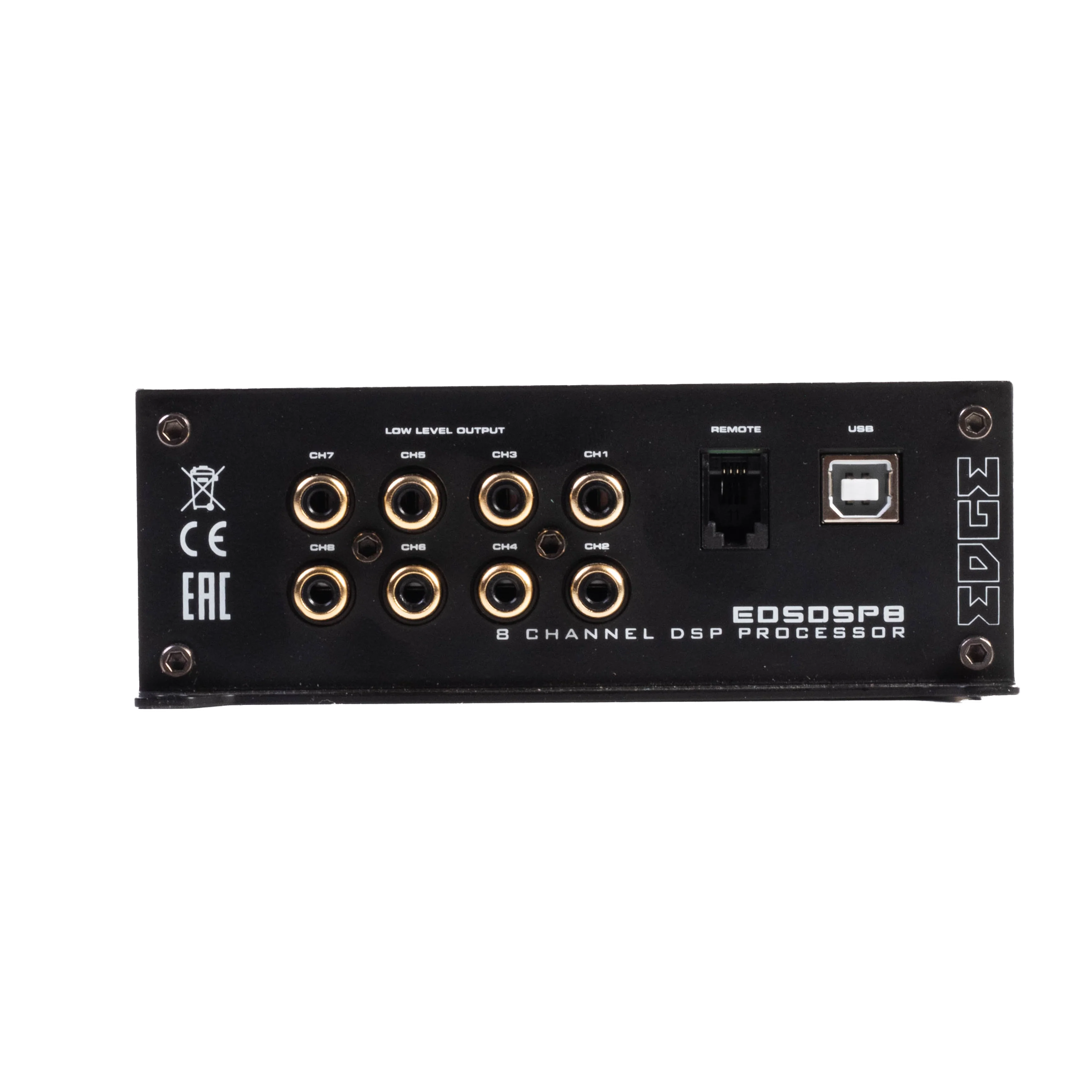

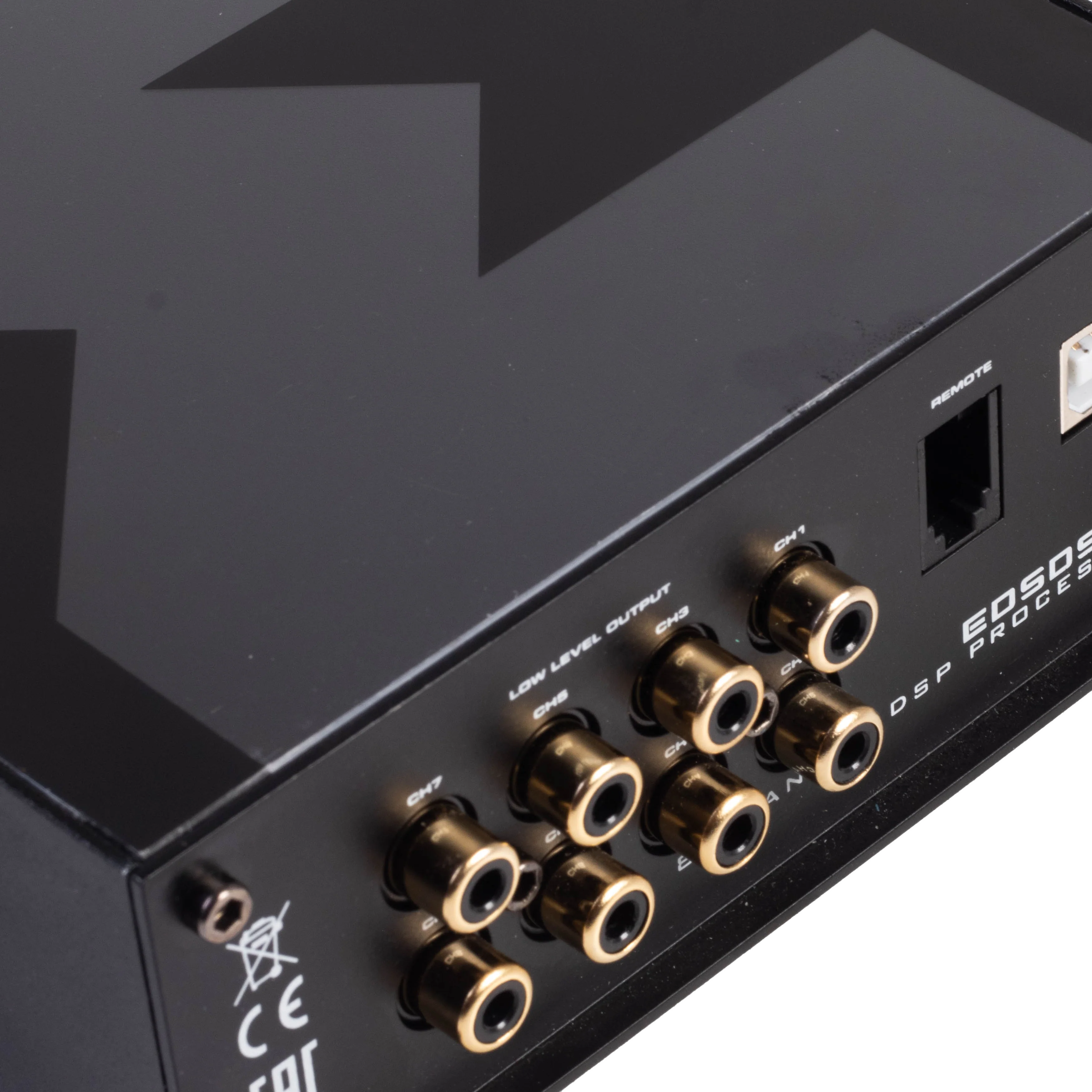

- 8 channel RCA output
- Master volume control via smartphone app
- Source input switching from High level, RCA, optical digital and wireless streaming
- 1/3 octave parametric equaliser with variable Q
- High pass, low pass and bandpass crossover for each channel with variable crossover slope up to 48dB per octave
- Phase control
- Time alignment for each channel
- Powerful mixer allows summing of input signal and distribution to any channel
- Limiter allows full control over system dynamics
- Real time adjustment from the drivers seat allowing easy setup after installation
- All features can be adjusted with intuitive gesture control
Specification
- Model: EDS8DSP-E3
- Configuration: 8 channel DSP processor
- Frequency Response: 20Hz - 20kHz
- Crossover Type: LP / HP / BP / Flat
- LP Crossover Range: 20Hz - 20kHz
- HP Crossover Range: 20Hz - 20kHz
Installation
- Dimensions (H x W x D): 1.6" x 5.3" x 5.2" (40mm x 135mm x 131mm)
Downloads
Product Information
Product Information
Shipping & Returns
Shipping & Returns
EDS8DSP-E3: EDGE Street Series 8 Channel DSP Processor
EDS8DSP-E3: EDGE Street Series 8 Channel DSP Processor
Features
- Cast aluminium chassis
- Auto turn on circuit
- High and low level input
- Optical and coaxial digital input
- Audio streaming receiver
- 8 channel RCA output
- Master volume control via smartphone app
- Source input switching from High level, RCA, optical digital and wireless streaming
- 1/3 octave parametric equaliser with variable Q
- High pass, low pass and bandpass crossover for each channel with variable crossover slope up to 48dB per octave
- Phase control
- Time alignment for each channel
- Powerful mixer allows summing of input signal and distribution to any channel
- Limiter allows full control over system dynamics
- Real time adjustment from the drivers seat allowing easy setup after installation
- All features can be adjusted with intuitive gesture control
Specification
- Model: EDS8DSP-E3
- Configuration: 8 channel DSP processor
- Frequency Response: 20Hz - 20kHz
- Crossover Type: LP / HP / BP / Flat
- LP Crossover Range: 20Hz - 20kHz
- HP Crossover Range: 20Hz - 20kHz
Installation
- Dimensions (H x W x D): 1.6" x 5.3" x 5.2" (40mm x 135mm x 131mm)
Downloads
$100.11
Original: $333.70
-70%EDS8DSP-E3: EDGE Street Series 8 Channel DSP Processor—
$333.70
$100.11Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Features
- Cast aluminium chassis
- Auto turn on circuit
- High and low level input
- Optical and coaxial digital input
- Audio streaming receiver
- 8 channel RCA output
- Master volume control via smartphone app
- Source input switching from High level, RCA, optical digital and wireless streaming
- 1/3 octave parametric equaliser with variable Q
- High pass, low pass and bandpass crossover for each channel with variable crossover slope up to 48dB per octave
- Phase control
- Time alignment for each channel
- Powerful mixer allows summing of input signal and distribution to any channel
- Limiter allows full control over system dynamics
- Real time adjustment from the drivers seat allowing easy setup after installation
- All features can be adjusted with intuitive gesture control
Specification
- Model: EDS8DSP-E3
- Configuration: 8 channel DSP processor
- Frequency Response: 20Hz - 20kHz
- Crossover Type: LP / HP / BP / Flat
- LP Crossover Range: 20Hz - 20kHz
- HP Crossover Range: 20Hz - 20kHz
Installation
- Dimensions (H x W x D): 1.6" x 5.3" x 5.2" (40mm x 135mm x 131mm)
