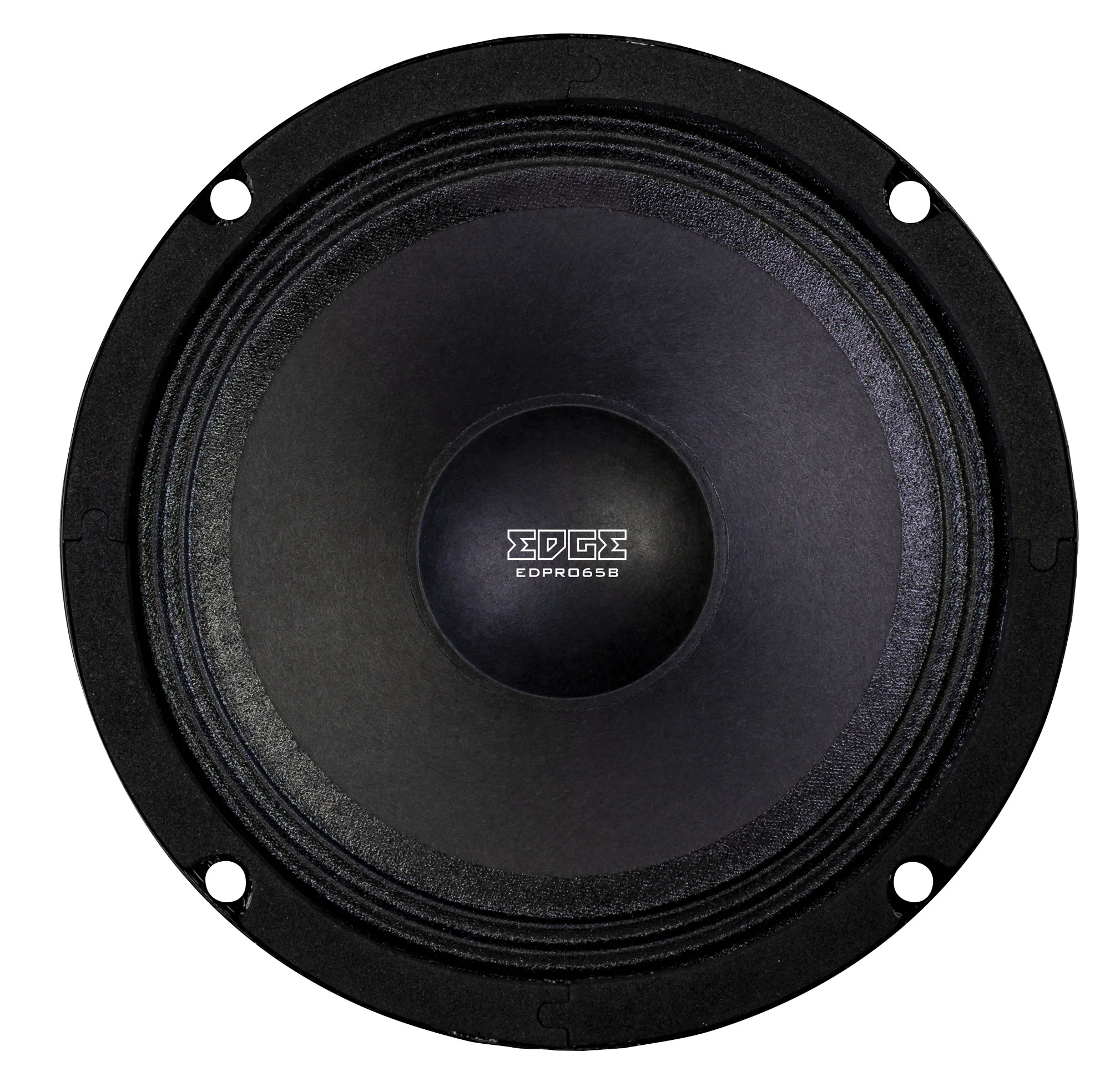

Our DB series features our first level of Pro audio speakers, some of the biggest and best selling in the world.

Our DB series Pro audio speakers are our entry level into producing high volume midrange output across a variety of speaker sizes. To produce the high volume levels expected from Pro audio, our EDGE DB Series feature highly engineered components which have been specially designed for extremely high efficiency and wide frequency response. This includes special cone materials, precision engineered voice coils and motors and custom tooled dust-caps. This results in a loud and market beating pro speaker.

Features

• Non pressed paper cone
• Dual roll foam surround
• Poly cotton spiders

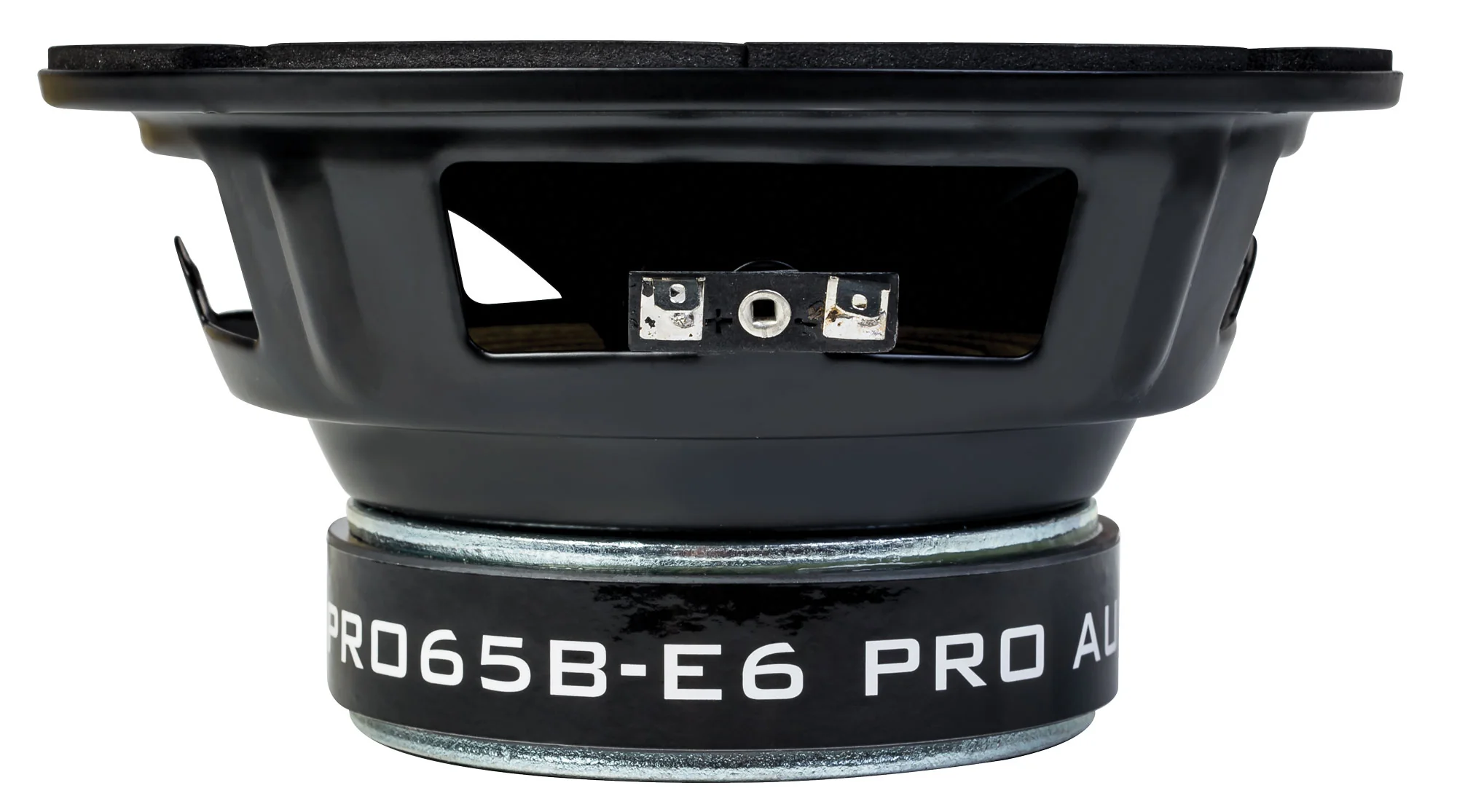

• Spade terminal
• Eva gasket

Specification

• Type: Pro Audio Midrange
• Configuration: 1 way
• Speaker Size: 6.5" (165mm)
• RMS Power: 150 watts
• Peak Power: 300 watts
• Sensitivity: 92dB
• Frequency Response: 150Hz - 10kHz
• Impedance: 4 Ohms
• Recommended Amplifier: EDB75.4-E9

Installation

• Mounting Depth: 3" (75mm)
• Mounting Diameter: 5.7" (145mm)
