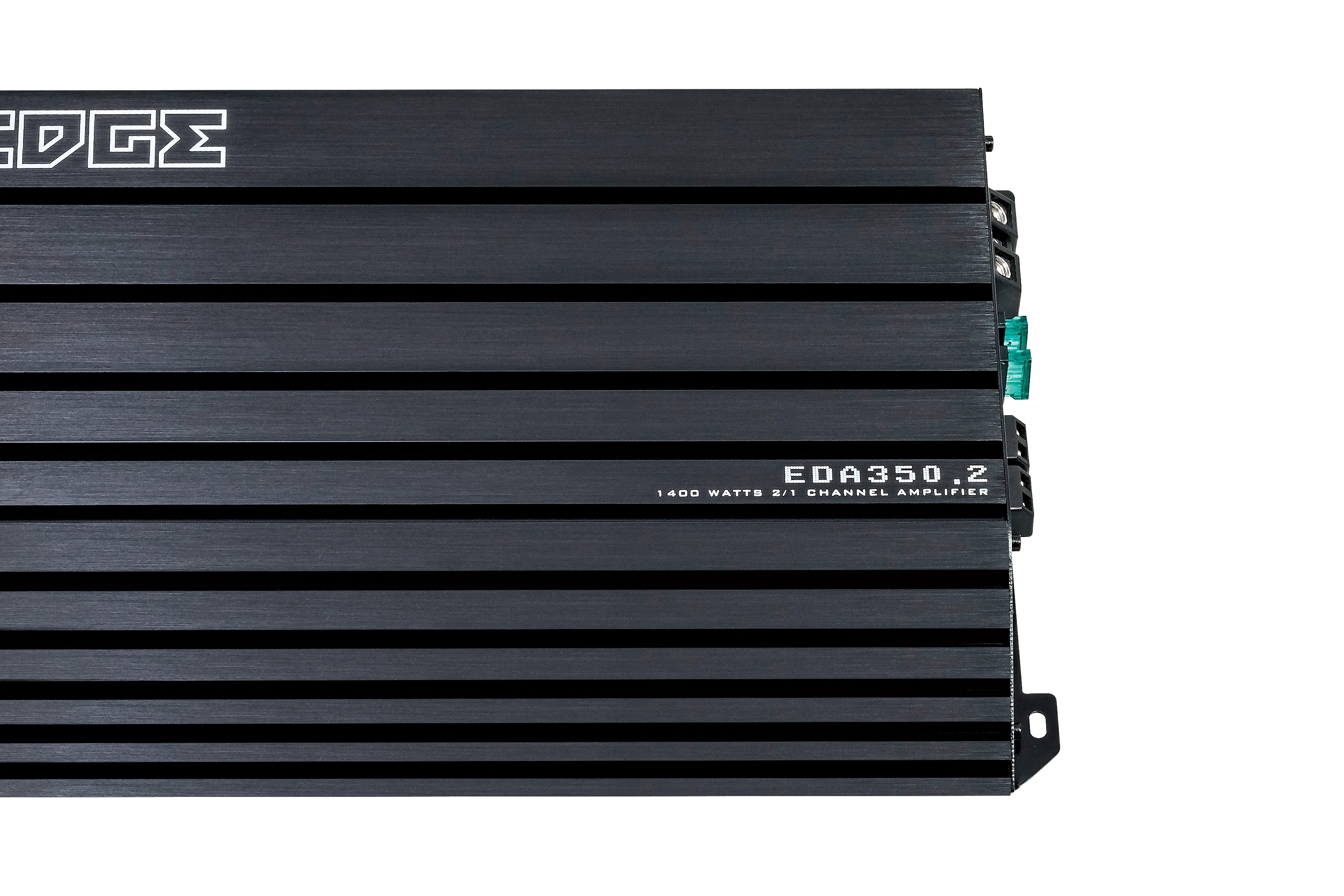

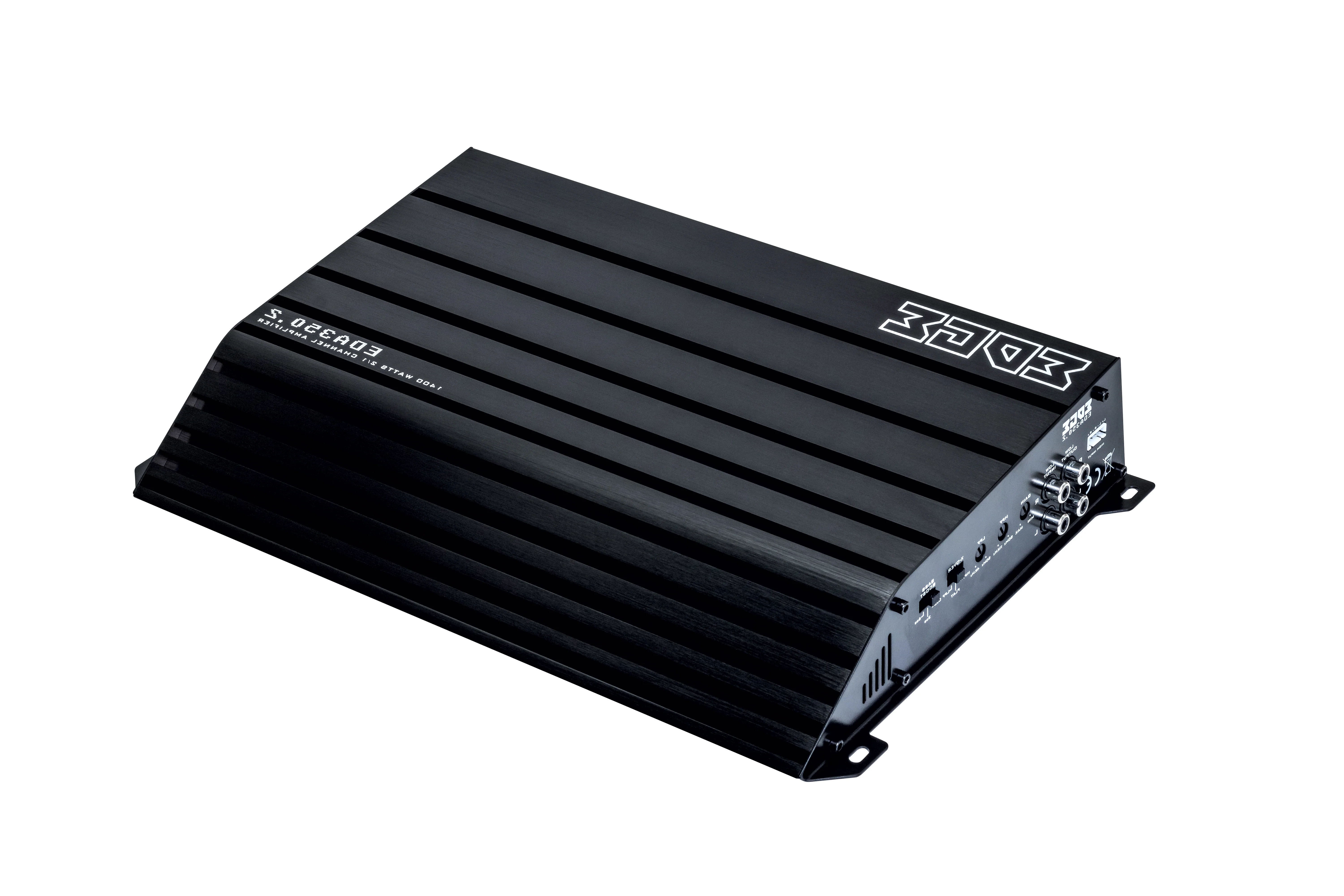

Amplifiers feature in the DBX range perfect to power the DBX speakers, tweeters and subwoofers

The DBX series amplifiers have some fantastic unique features, the EDGE heatsink design has progressive fins promoting heat dispersion to keep the amps cool. The 2 and 4 channel class AB models feature an extended set of filters with the HPF up to 11KHz and the LPF to 4KHz giving much more control of your speakers than average amplifiers.

When enhanced power for your in car audio is your drive, the DBX series amps provide everything you need for high power high quality amplification.

Features

• Built in active crossovers
• Bass boost circuit
• High level input with auto turn on function

Specification

• Configuration: 2 Channel
• RMS @ 4 Ohms Stereo: 2 x 250 watts
• RMS @ 2 Ohms Stereo: 2 x 350 watts
• RMS @ 4 Ohms Mono: 1 x 700 watts
• Maximum Power: 1400 watts
• Frequency Response: 20Hz - 20kHz
• Crossover Type: LP / HP / FLAT
• Crossover Range: 30Hz - 250Hz
• Recommended Fuse: 2 x 30A
• Topology: Class AB

Installation

• Dimensions (H x W X D): 58mm x 350mm x 224mm (2.3" x 13.8" x 8.8")

Downloads

• EDGE 2024 Catalogue
• EDA350.2-E7 Manual
